Overheating is without doubt one of the earliest caution indicators that one thing inside of your ultimate force goes unsuitable. Earlier than you pay attention grinding or revel in a complete failure, a gentle upward push in temperature incessantly indicators issues that you’ll be able to catch early if what to search for.
On this Store Communicate Weblog publish, we’ll speak about what is regarded as too scorching, then speak about the 5 key explanation why ultimate drives overheat. We’ll wrap up with a handy guide a rough overview of what sort of harm overheating could cause and easy assessments to handle it.
Listed below are a couple of different Store Communicate Weblog posts you may well be concerned about:
What “Standard” vs. “Too Sizzling” Appears to be like Like
If you’ll be able to’t grasp your hand at the motor housing for greater than a 2nd or two, it’s trending towards the overheating zone. And if it hisses while you sprinkle some water on it, then issues are getting critical. That each one interprets to temperatures above 200°F, and when you hit 230°F, the equipment oil breaks down unexpectedly, seals melt or fail, and bearings and gears are going to go through everlasting harm.
So let’s speak about what reasons your ultimate drives to run scorching.
Reason why #1: Low or Infected Equipment Oil

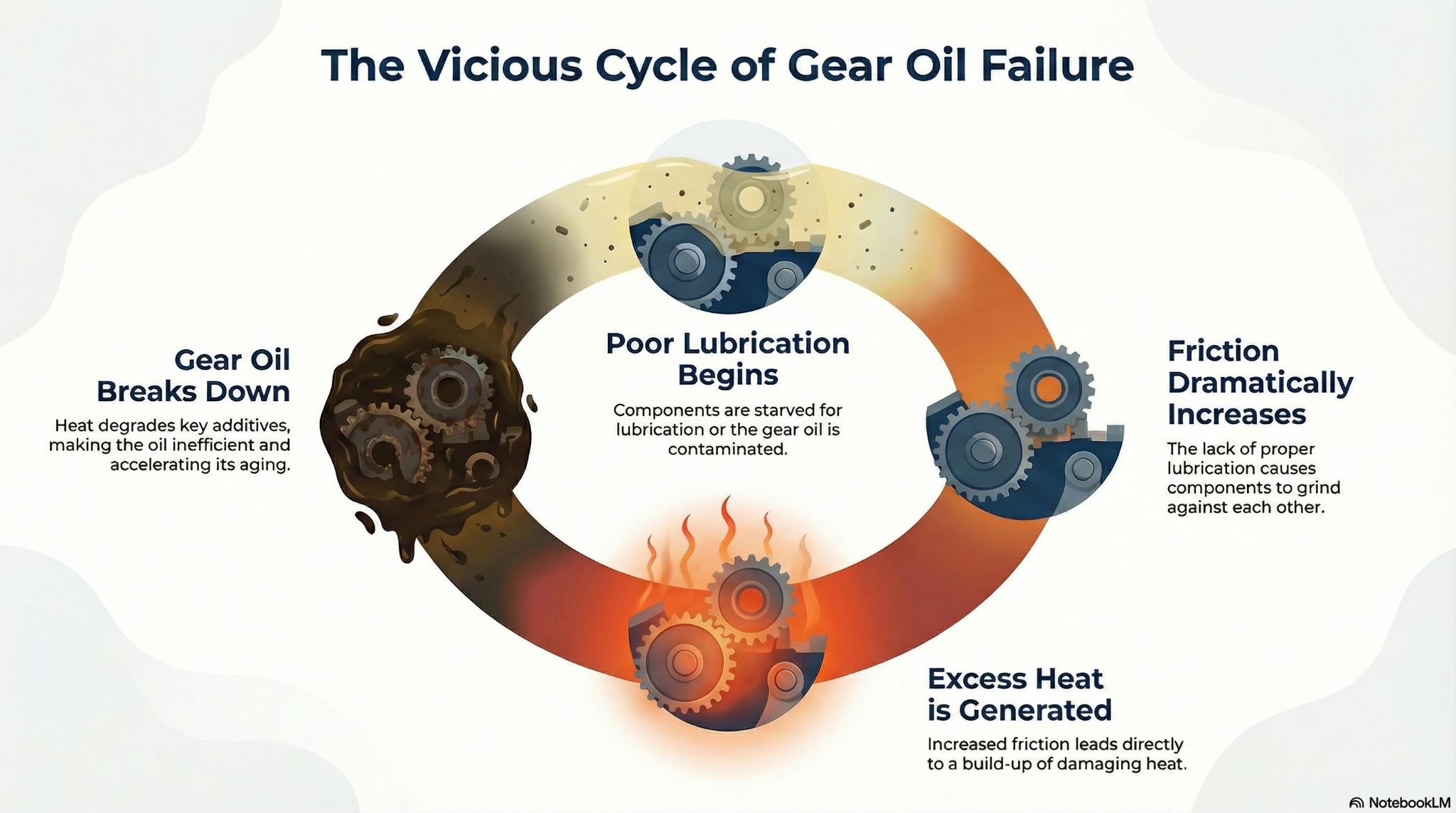

Equipment oil is so important to the operation of ultimate force motors. When elements are starved for lubrication or the equipment oil is infected, the result’s going to be greater friction. Extra friction results in extra warmth era. And greater warmth reasons your equipment oil to lose key components, making it inefficient at very best. This result’s getting old equipment oil, which is herbal however turns into speeded up within the presence of warmth.
Equipment oil contamination can temporarily develop into a nightmare. It results in speeded up put on on gears, bearings, or even seals, ultimately leading to a totaled ultimate force motor.
Signs of substances oil problems come with a burnt scent, slow apparatus motion, and noise from the planetary hub of your ultimate force motor.
Reason why #2: Case Drain Line Issues

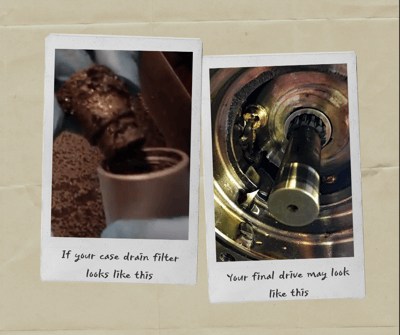

Some other attainable factor with an overheating ultimate force motor is case drain issues. The case drain relieves power within the ultimate force motor and is helping with lubrication float. When float during the case drain line is impeded, the result’s an overheated ultimate force. Commonplace reasons of case drain float problems come with a clogged line (normally because of a clogged case drain filter out), kinked hoses that make float tricky, or unsuitable routing.
The result of case drain line issues come with seal blowouts, overheating, and catastrophic failure.
Reason why #2: Over-Tightened Tracks Expanding Load
Should you’ve were given a observe system, like a CTL or mini-excavator, over the top observe pressure could cause issues for extra than simply the observe meeting. If the tracks are too tight, this overloads the bearings and creates further resistance that the general force motors have to triumph over. There’s a particular hyperlink between overheating ultimate force motors and tracks which might be simply too tight.
Observe pressure on compact apparatus is straightforward to test within the box, however you must all the time seek the advice of the producer’s directions and pointers on your specific system. For a CTL, raise the entrance of the system, to find the midpoint of the observe, and measure the sag: maximum must have about 1 to one.5 inches. For a mini excavator, raise one aspect with the increase and take a look at the sag on the midpoint: most often ⅜”–¾”. If there is not any sag, the observe is just too tight and can overload the general drives.
Reason why #4: Hydraulic Waft or Force Problems
Some other attainable reason behind an overheating ultimate force is hydraulic float and power problems. Believe this: low float results in cavitation that no longer most effective ratings the elements inside of your ultimate force motor but in addition results in over the top warmth era. However over the top float or power could cause issues as neatly. That more or less float results in overload prerequisites that purpose speedy warmth buildup.
This could also be an instance of ways upstream pump and valve problems can masquerade as an issue most effective for your ultimate force motor.
You’ll be able to spot hydraulic float or power problems by way of staring at how the system behaves underneath load. If the general force overheats even if observe pressure and power oil ranges are proper, or if the motor feels susceptible, jerky, or sluggish to reply, the problem is also upstream. Checking the pump output, gadget power, and valve efficiency permit you to resolve whether or not the issue is low float, over the top float, or power imbalance.
Reason why #5: Interior Put on and Element Breakdown
Interior put on creates drag inside of your ultimate force. This drag forces the general force motor to paintings tougher and generate extra warmth. As interior elements like gears, bearings, and splines go to pot, they shed steel debris into the equipment oil. This, in flip, additional will increase friction and hurries up the warmth buildup in a significantly harmful cycle.
You’ll be able to take a look at for indicators of interior put on by way of pulling the magnetic drain plug and checking for steel particles, in addition to staring at for leaks and listening for extraordinary grinding. Those are all transparent indicators that interior put on is underway and must be addressed once conceivable.
How Warmth Damages Your Ultimate Force If Not noted
So let’s take a minute and summarize how warmth can harm your ultimate force motors. Listed below are the 4 key issues concerned:
- Breakdown of substances oil and lack of lubrication.
- Speeded up seal put on resulting in leaks
- Spalling, scoring, and untimely bearing failure.
- Chance of unexpected failure at the jobsite.
Easy Box Assessments to Diagnose the Supply
Listed below are some easy box assessments to run to diagnose the supply of overheating:
- Take a look at for leaks across the hub.
- Investigate cross-check observe pressure
- Check the case drain line situation
- Take a look at the hydraulic fluid situation and stage
- Pull the magnetic plug to test for steel
Conclusion
Overheating isn’t one thing to forget about. It is your ultimate force’s approach of telling you that one thing upstream, interior, or mechanical is hanging the gadget in danger. By means of catching the caution indicators early and addressing the foundation purpose, you’ll be able to save you expensive disasters, lengthen the lifetime of your apparatus, and stay your jobs operating on agenda.
In case your ultimate force is operating scorching or appearing indicators of bother, don’t wait: you’ll be able to touch Texas Ultimate Force as of late for knowledgeable troubleshooting and dependable substitute choices that stay you operating as an alternative of ready.
