After we discuss our ‘constructed heritage’ we generally tend to consider venerable historical constructions – cathedrals, castles or nation manors. However in Huddersfield some of the valuable items of architectural heritage dates again most effective to the overdue Sixties.
The previous Queensgate Marketplace, a grade II indexed construction that opened in 1970, is a putting instance of insitu concrete building. Its roof (the actually spectacular little bit of the construction) accommodates 21 free-standing 1m x 0.7m columns ranging in peak from 3.3m to 7.5m, every supporting an asymmetrical hyperbolic paraboloid concrete umbrella measuring 17m via 9.5m in plan and 3m deep.
Each and every roof cover is situated off-centre and cantilevers 7m to 1 aspect of its column and 10m to the opposite.
The architect, J Seymour Harris Partnership, designed the construction to awaken the sensation of a conventional coated marketplace with its cluster of awnings and umbrellas.
The repeated trend of asymmetry offers the roof construction a putting sculptural look that has drawn admiration no longer most effective from architectural mavens but additionally from engineers. In 2007 the construction used to be awarded the Concrete Society’s Certificates of Excellence for a ‘mature construction’.
Final summer season, contractor Bam Building started working at the partial demolition of the Queensgate Marketplace. However a long way from being an act of wanton vandalism that is the primary section in a significant regeneration scheme via Kirklees Council by which the Queensgate Marketplace construction will likely be remodeled into a brand new meals corridor with an adjacent library and a big public sq..
The scheme – dubbed “Our Cultural Middle” – is being delivered in two stages. Section one centres at the redevelopment of the Queensgate Marketplace construction and is scheduled for crowning glory in spring 2026 with the brand new meals corridor and library opening in the summertime.
Section two of the masterplan, which has not too long ago gained complete making plans approval, will see the previous library and gallery construction on Princess Alexandra Stroll refurbished to deal with a brand new regional museum and artwork gallery.
Procurement for section two is easily beneath means, with an legitimate contract announcement anticipated later this 12 months. Paintings in this section will start in an instant following the crowning glory of section one.
The scheme is a part of a much broader 10-year, £250m regeneration plan – the Huddersfield Blueprint.
Major contractor Bam Building hired Burnley-based Howard Stott Demolition to hold out the section one demolition paintings final 12 months. This concerned stripping out the internal and moderately doing away with 9 15.5m x 5.5m ceramic aid panels from the unique façade.
The panels include an set up entitled Articulation in Motion via the German sculptor Fritz Steller, whom Seymour Harris’ lead architect Gwyn Roberts knew from his pupil days in Birmingham.
Those panels had been got rid of via recovery specialist Cliveden Conservation and will likely be saved till the undertaking is done. The panels will in the long run be reinstalled at the new construction’s façade the use of a specially-designed solving mechanism.
Right through the redevelopment, the concrete body will likely be renovated and repaired so as to be sure that the long-term balance and longevity of the construction.
The entire concrete constructions left status after crowning glory of the demolition section are indexed and can include a big proportion of the brand new construction this is being erected round it. In consequence, the entire paintings now being performed has been deliberate to keep away from harm to those portions of the construction.
The narrow concrete pillars had been encased in protecting bushes sheathing and automobile get right of entry to to the web site is specific.

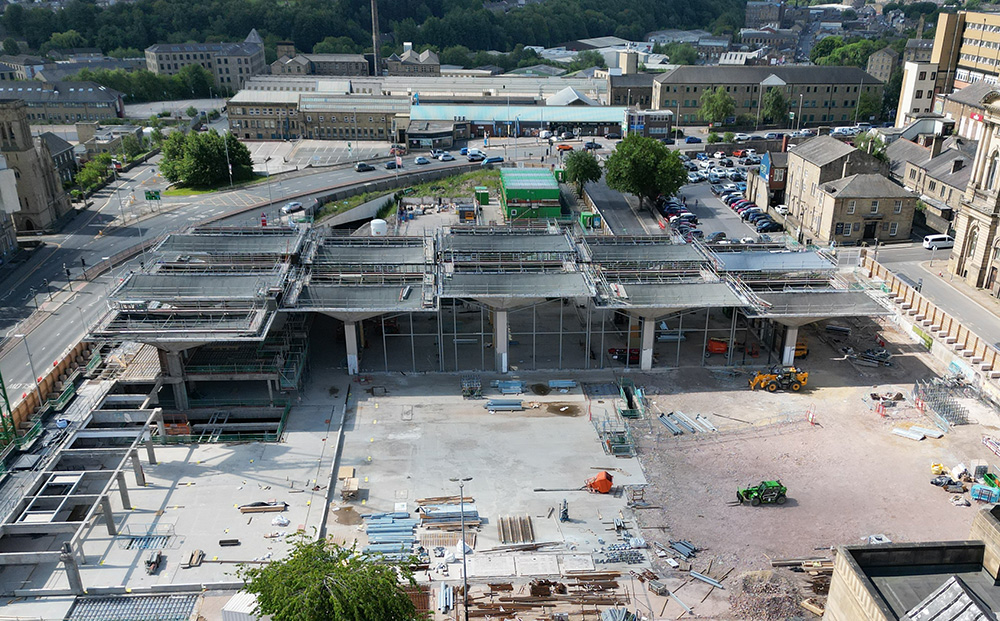

With demolition now entire, the huge paraboloid roof constructions of the previous marketplace had been totally printed. Set up of latest glazing to attach those paperwork is beneath means, making the roof watertight whilst permitting herbal gentle to filter out via from other angles.
Running with the present construction to make sure its longevity and balance used to be probably the most greatest demanding situations for the undertaking, but additionally probably the most rewarding, says Mark Gibson, Bam’s northern area building director.
“Putting in the brand new glazing gadgets in between the parabolic roof constructions is an important technical problem. Now not most effective do they require extraordinarily actual measurements however in addition they wish to permit for roughly 100mm of motion for every parabolic construction. Because of this, every glazing unit calls for a motion joint mechanism to be put in.”
The unique glazing device used aluminium frames mounted most effective to the higher a part of the hole with concertina membranes of man-made rubber used to seal across the unit to deal with motion in any course.
The development group is these days completing the structural paintings for section probably the most undertaking. This comprises strengthening works, putting in the brand new library flooring, completing the rules and erecting the brand new metal body.
Erection of the primary elevations is now going down, revealing the dimensions and footprint of the library and meals corridor and offering guests with a tangible sense of what’s to come back.
In the meantime, Bam is putting in new drainage and an attenuation tank for the general public sq. outdoor the marketplace construction. This may occasionally then be finished with granite units and York stone paving.
Sensible crowning glory is anticipated in spring 2026, with inner fit-out to be finished in summer season 2026
Later this month, the folk of Huddersfield and the encircling house gets a possibility to look for themselves how paintings is progressing on their “cultural middle” when Bam Building opens the web site as a part of this 12 months’s 10-day Kirklees Heritage pageant.
The only-off excursion, on 18th September, will be offering guests and design fanatics an extraordinary likelihood to discover the architectural importance of the Queensgate Marketplace construction.
“That is an implausible alternative for other people to come back and spot the fantastic development we’re making on section one,” says Graham Turner, cupboard member for finance and regeneration at Kirklees Council. “The previous marketplace construction holds a distinct position in Huddersfield’s identification, and it’s inspiring to look it being given new existence for long term generations.”
Mission Crew
Architects:
FCB Studios (masterplan);
Chapman Taylor (section one supply)
Major contractor:
Bam Building
Cladding:
CCL Facades
Demolition:
Howard Stott Demolition
Masonry:
Henley Stone Experts
Groundworks:
GRK Civils
Steelwork:
BSB Structural
