Three diesel-powered Case mini excavators and one electric model expand the lineup: 11.8-horsepower CX12D; 18.4-horsepower CX19D; 59.4-horsepower CX60D; and the all-electric, 32.3-kWh CX25EV.
All the new mini excavators feature zero or minimal tail swing and intuitive controls, easy-to-access service points, and two standard auxiliary hydraulic circuits.

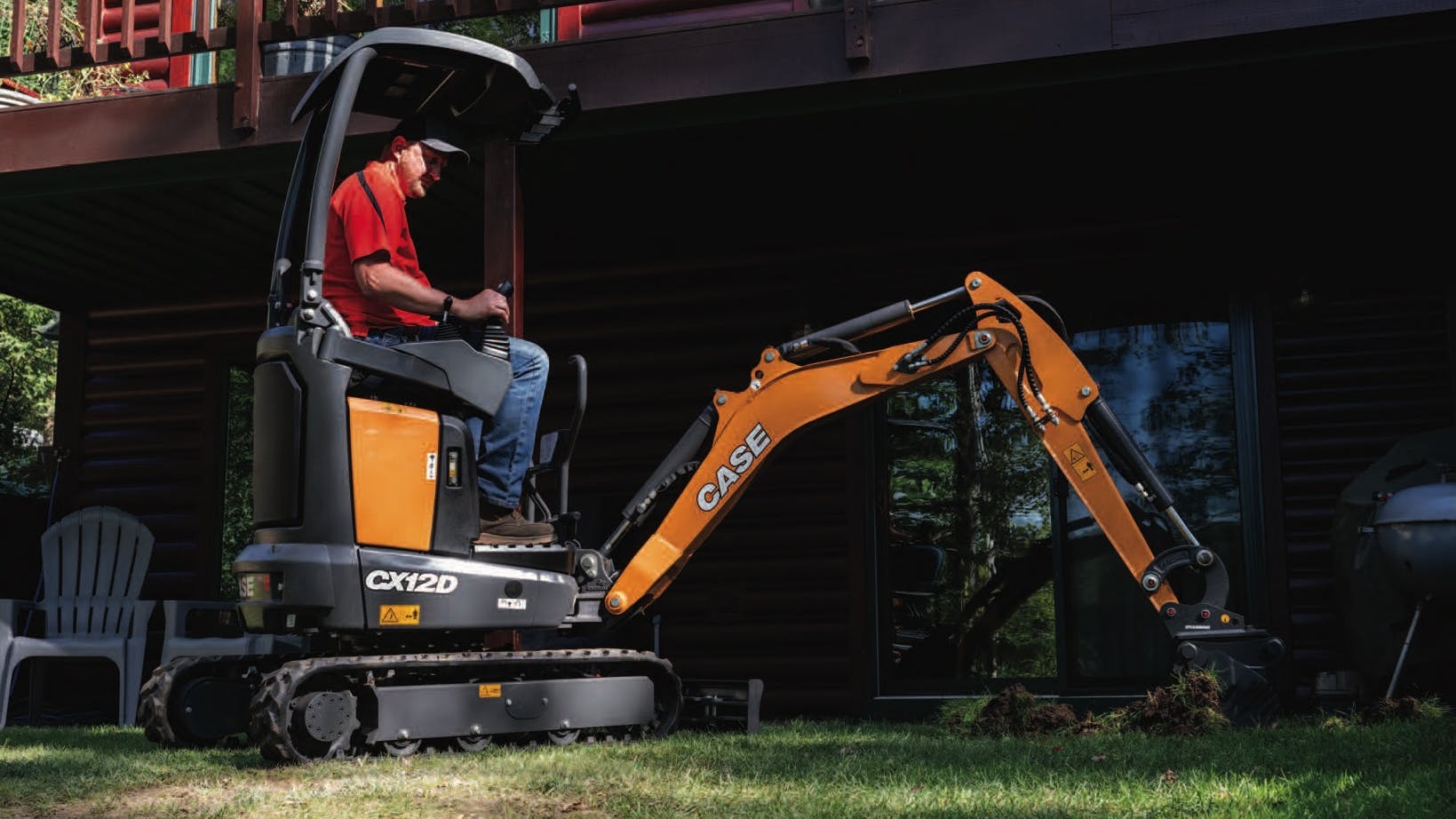

Case CX12D Excavator Specs
- Maximum dig depth: 6’ 1”
- Operating weight: 2,932 lb.
- Power: 11.8 hp
- Dump height: 7’
Bucket digging force: 2,585 lb.-ft.

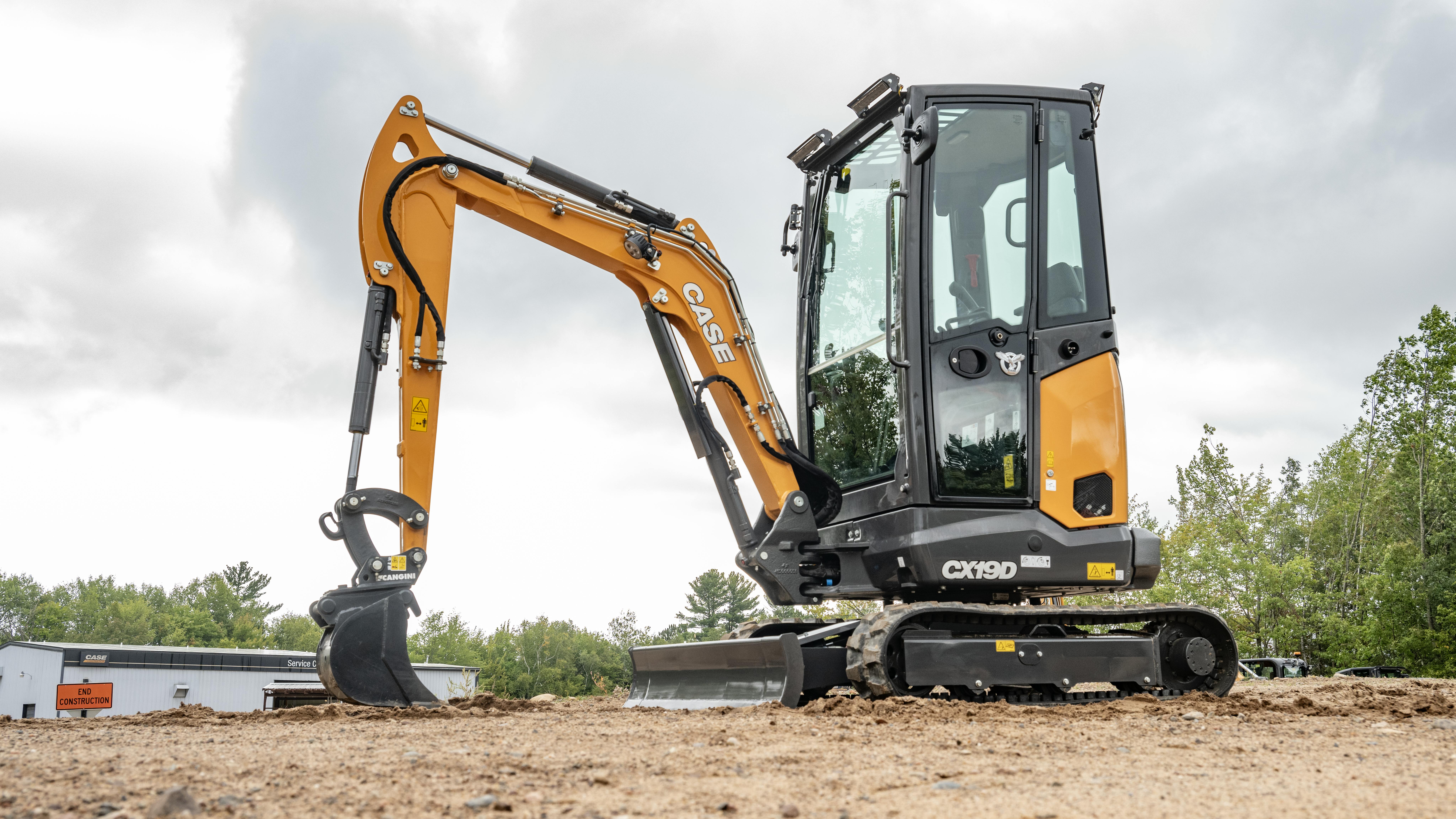

Case CX19D Excavator Specs
- Maximum dig depth: 7’ 6”
- Operating weight: 4,145 lb.
- Power: 18.4 hp
- Dump height: 8’ 6”
- Bucket digging force: 3,372 lb.-ft.
Case CX60D Excavator Specs
- Maximum dig depth: 12’ 8”
- Operating weight: 13,162 lb.
- Power: 59.4 hp
- Dump height: 13’ 5”
Bucket digging force: 11,915 lb.-ft.

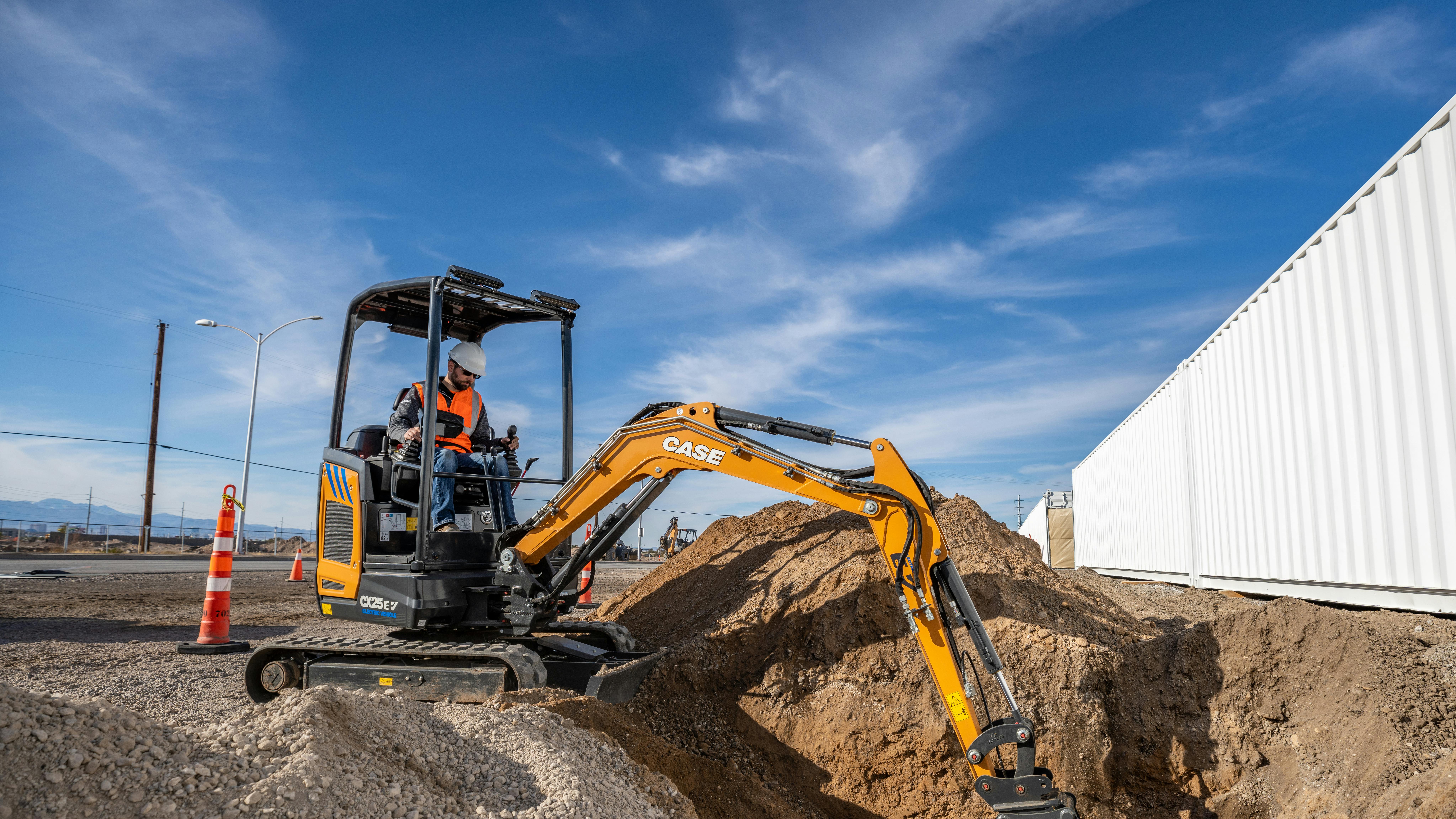

Case CX25EV Excavator Specs
- Maximum dig depth: 8’ 5”
- Operating weight: 5,159 lb.
- Battery capacity: 32.3 kWh
- Dump height: 8’ 8”
- Bucket digging force: 3,597 lb.-ft.
